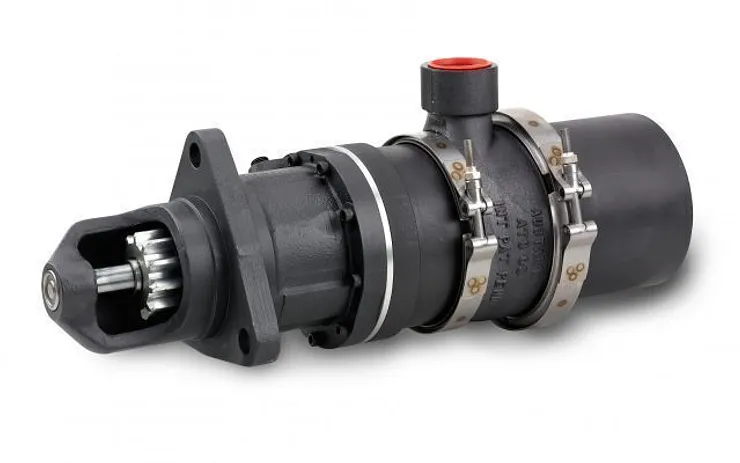

Austart – ATS93-3438 Starter

ATS93 PRE-ENGAGED MANUAL ATS93 SERVICE KIT

Key Features at 100 psi starting pressure
Weight	36 lb (16.3 kg)
Power	35 hp (25.7 kW)
Torque	210 ft lb (284.7 Nm)
Consumption	13.5 scfs (380 I/s)
Speed	3600 RPM
Noise Level	10 dBa

By ingenious design, benifits of Austart turbine starters include:

• No lubrication required
• Higher cranking torque
• Extended cranking periods
• Faster, more reliable starting
• 3 stage self governed turbine wheel
• Corrosion resistant coatings
• 360 degree indexation of the inlet port
• Fewer moving parts
• Longer service intervals
• Immunity to dusty environments
• Immunity to extremely high or low temperatures
• No need for special tools when servicing
• No batteries are required
• Optimised planetary gearing

Air starters come in many configurations for a variety of applications and fitment objectives.

• Nosecone or overhung pinions
• Berrylium Copper Bronze (BCB) non sparking pinions available
• Clockwise or Counter clockwise rotation
• Pre-engaged or inertia engagement options
• Z shaped models available for limited space applications
• Mounting flange and pinion options available to suit most engines
