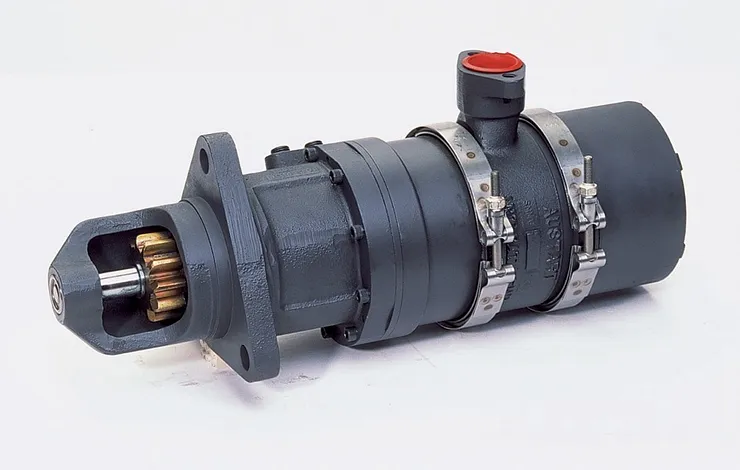

Austart – ATS83-22311 Pre-Engaged Starter

ATS83 PRE-ENGAGED MANUAL ATS 83 SERVICE KIT

Key Features at 100 psi
Weight	35.3 lb (16 kg)
Power	26 hp (19.1 kW)
Torque	130 ft lb (176.3 Nm)
Consumption	6 scfs (170 I\s)
Speed	4000 RPM
Noise Level	100 dBa

By ingenious design, benifits of Austart turbine starters include:

• No lubrication required
• Higher cranking torque
• Extended cranking periods
• Faster and more reliable starting
• 3 staged self governed turbine wheel
• Corrosion resistant coatings
• 360 degree indexation of the inlet port
• Fewer moving parts
• Longer service intervals
• Immunity to dusty environments
• Immunity to extremely high or low temperatures
• No need for special tools when servicing
• No batteries are required
• Optimized planetary gearing

Air starters come in many configurations for a variety of applications and fitment objectives.

• Nosecone or overhung pinions
• Beryllium Copper Bronze (BCB) non sparking pinions available
• Clockwise or Counter clockwise rotation
• Pre-engaged or inertia engagement options
• Z shaped models available for limited space applications
• Mounting flange and pinion options available to suit most engines
